Dimmer Switch for Dimmable LED Built-in Dimmer

Dimmer Switch for Dimmable LED Built-in Dimmer - 图片 2

Dimmer Switch for Dimmable LED Built-in Dimmer - 图片 3

Phase-Cut Dimmer

Dimmer Switch for Dimmable LED Built-in Dimmer

Support single module(Wi-Fi/Bluetooth/Zigbee
Voice control(Alexa and Google Home,etc)
TUYA APP Remote control
Group control or combine control
Timing Function(ON/OFF/eekly Cycle)
High compatibility with most bulbs on the market
Excellent linearity dimming function
Support to adjust the lowest brightness level
With ON/OFF automatic memory function
Overload and overtemperature protection
Low standby power consumption
Function status indicator
1-Way or Multi-Way control
Support one or more self-reset switches
Suitable for wall switch/self-reset switch/luminaire

SKU： D-H-D2209SM-D2210SM 分类： Phase-Cut Dimmer

Model No.	Rated Voltage	Communication Module	Power Supply	Max.Load	Min.Load	DimmingMethod	Application	Dimension L×W×H (mm)
Model No.	Rated Voltage	Communication Module	Power Supply	LED/lncandescent	LED/lncandescent	DimmingMethod	Application	Dimension L×W×H (mm)

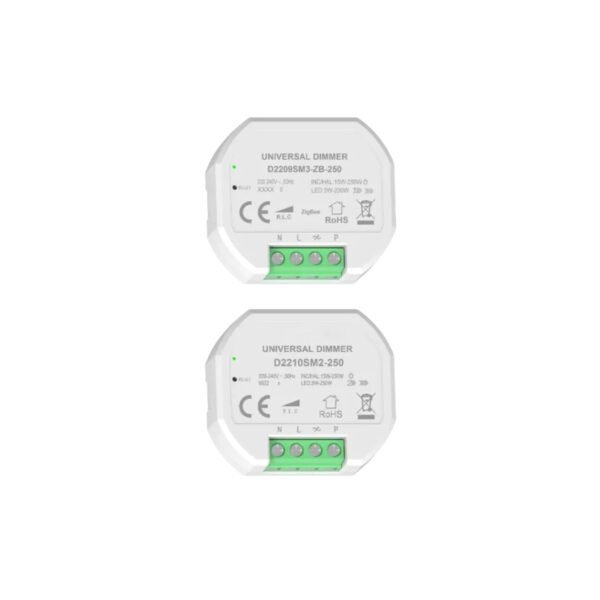

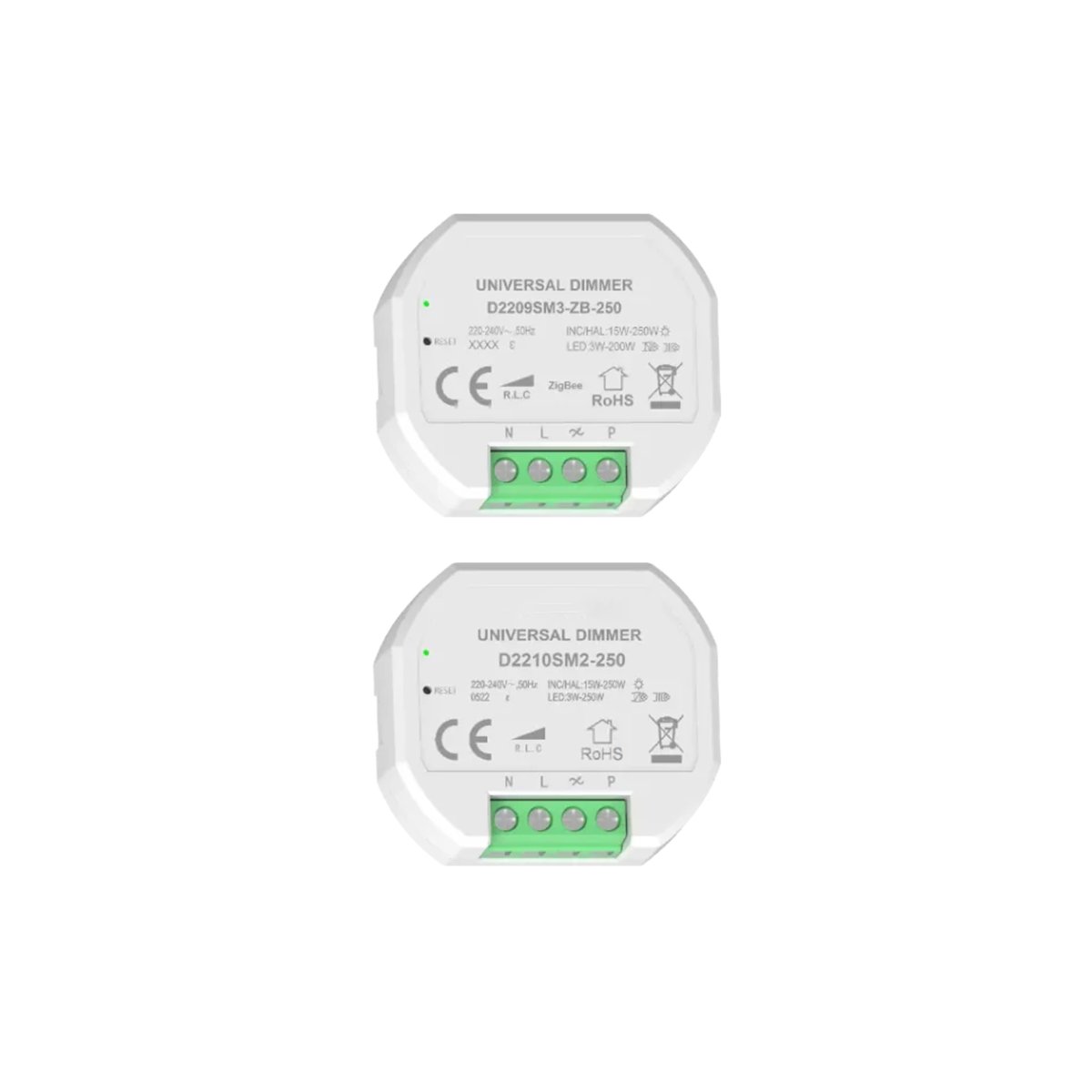

D2209SM3-*-250	220-240V, 50Hz	Bluetooth Zigbee	Live wire or Neutral & Live wire	200W/250W	3W/15W	Phase cut (Universal)	1-Way or Multi-Way	48x42x18

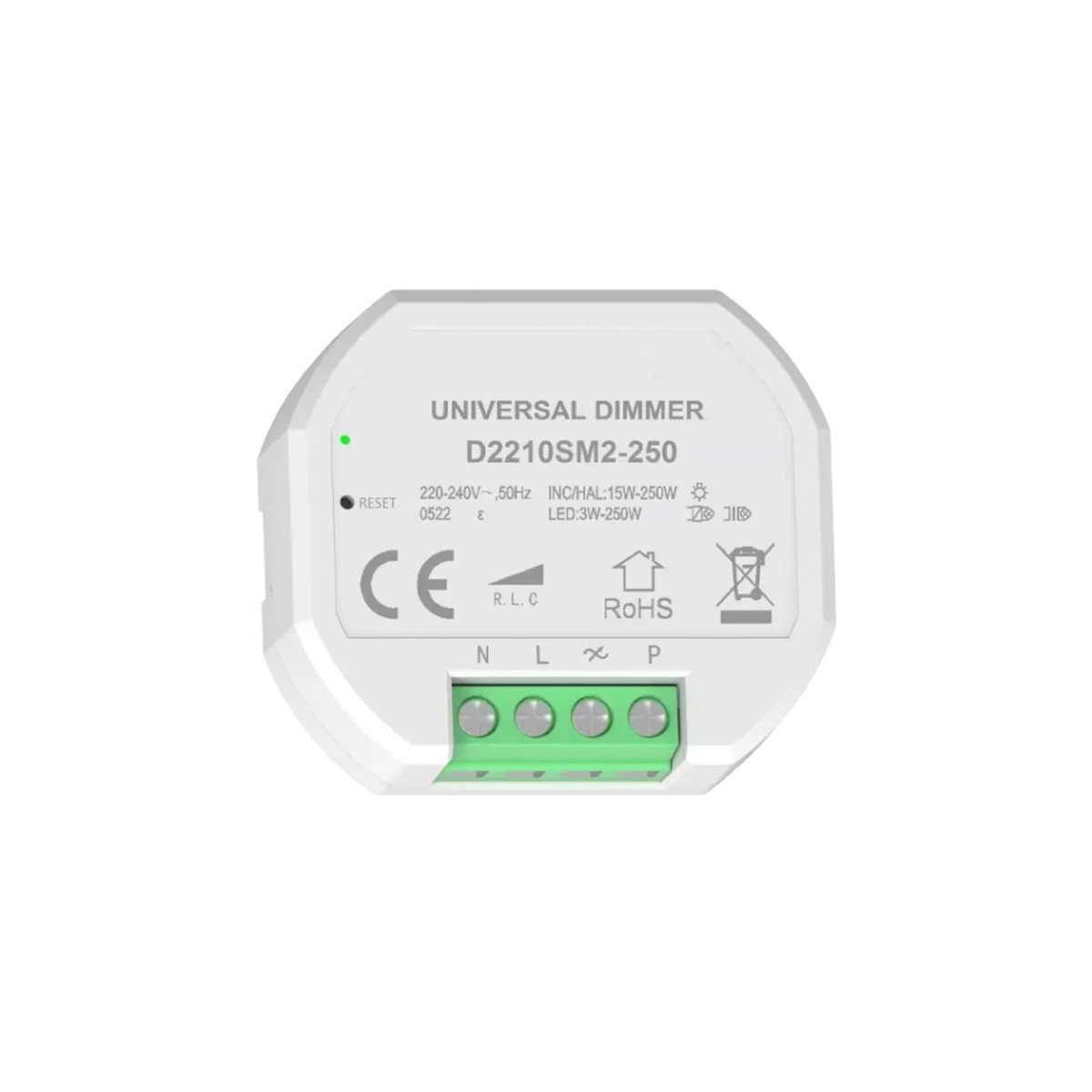

D2210SM2-*-250	220-240V, 50Hz	WiFi Bluetooth Zigbee	Neutral and Live wire	200W/250W	3W/15W	Phase cut (Universal)	1-Way or Multi-Way	48x42x18
D2210SU2-*-500	220-240V, 50Hz	WiFi Bluetooth Zigbee	Neutral and Live wire	127V:200W/300W 220V:200W/500W	3W/15W	Phase cut (Trailing)	1-Way or Multi-Way	48x42x18

Remark:”“*”in model means Communication Module, W- means WiFi, B- means Bluetooth, ZB- means Zigbee.

Listed	CE, ENERGY STAR, ERP, ETL, FCC, PSE, ROHS, SAA
